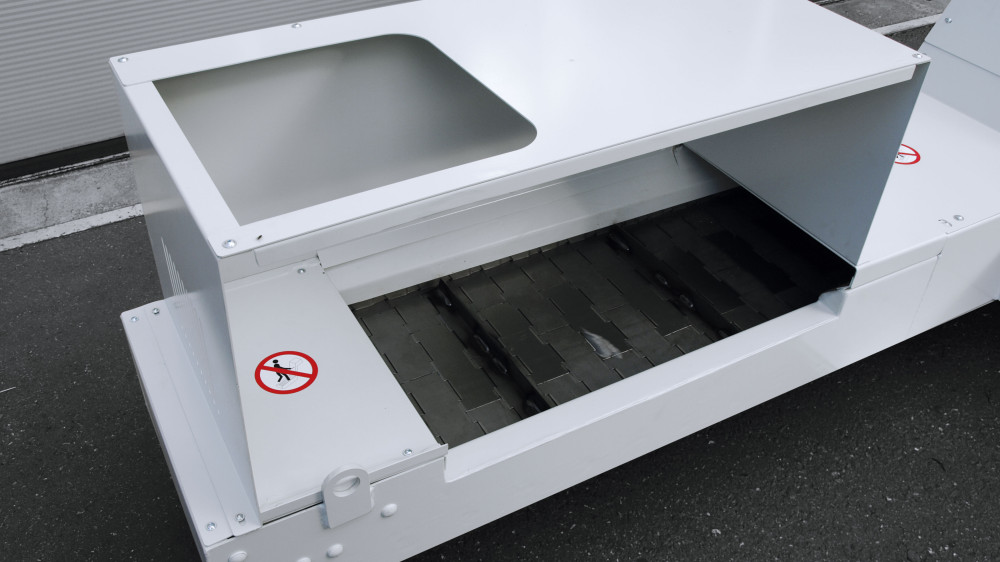

The hinged belt conveyor is equipped with a special hinged apron conveyor. The bulk material runs on the plates and is conveyed safely out of the machine.

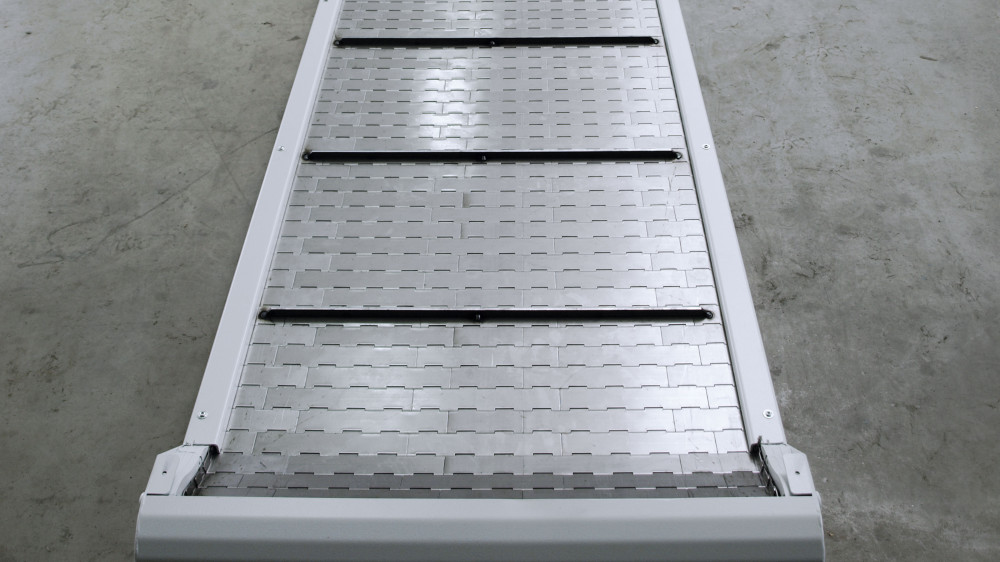

The hinged belt conveyor also consists of two chain strands, one on the right and one on the left, as well as the plates in between. The chains are equipped with individual rollers, are easy to move and run in a continuous guide. This enables the use of economical geared motors and at the same time reduces the power required to operate the system. As a result, the system is particularly energy-efficient.

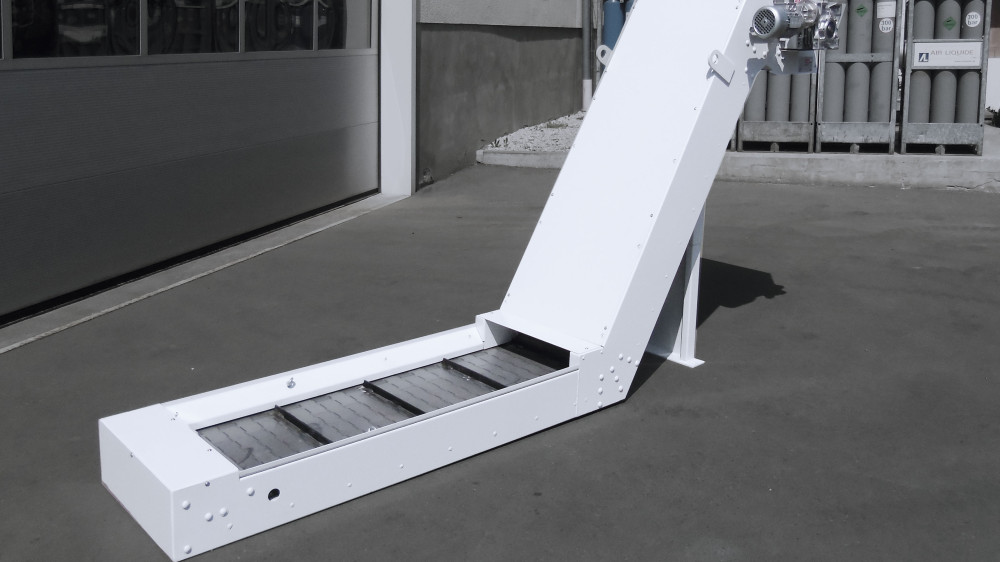

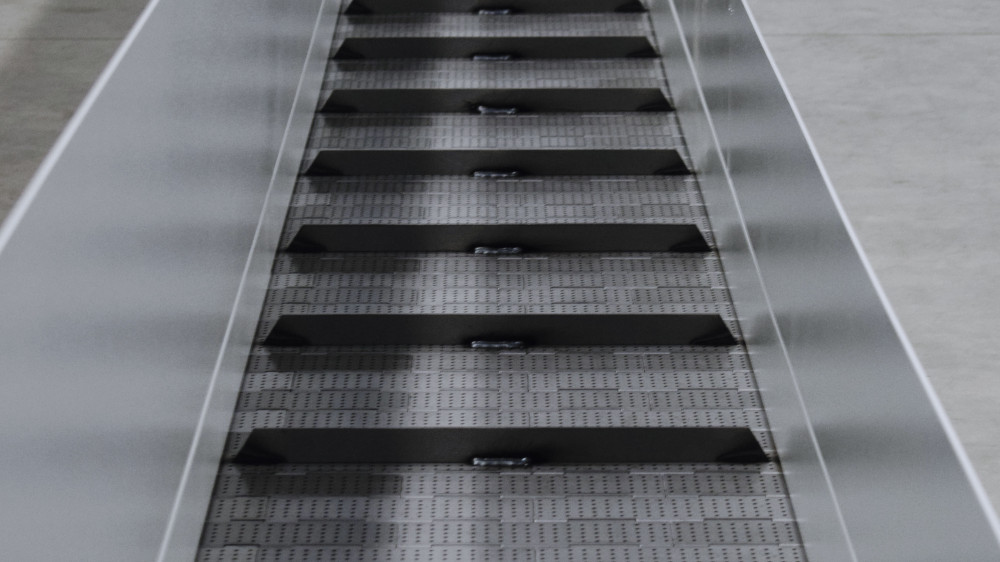

The incline angle of the conveyor is 60°. Special flights ensure that the material continues to be transported in the ascending section and is discharged optimally. The slat conveyor pitches are variable and range from 38 to 150 mm. Plates of different sizes, individually armored, hard-faced or perforated, are used depending on the application. We create the perfect conveyor system for every application.

The stationary deflections and the drive sprockets are made of special, wear-resistant materials. This ensures a service life that easily covers the life cycle of a processing machine in multi-shift operation. You benefit from the very low follow-up and wear costs of the system and contribute to greater sustainability within your processes. To protect the entire system, electronic run monitoring is integrated to prevent blockages and hinge plate breakage. With this Industry 4.0-capable system, you are equipped for the future and reduce your personnel costs and maintenance costs thanks to the high level of automation.

The hinged belt conveyor is suitable for both dry and wet applications in the fluid and gives you maximum flexibility. For use as a wet conveyor, the system also has a lifting station with integrated pumps and fill level sensors. The fluid pre-filtered by the chain is fed into the process and downstream filtration. The contained liquid flows through the plate and along side-mounted separator plates into the tank. Solids and liquid are separated without the need for additional energy.

Designed for indoor and outdoor use, the hinged belt conveyor can be used as a stand-alone conveyor or as part of an interlinked system, depending on the application. Its simple integration into existing machine concepts makes it particularly flexible and adaptable.

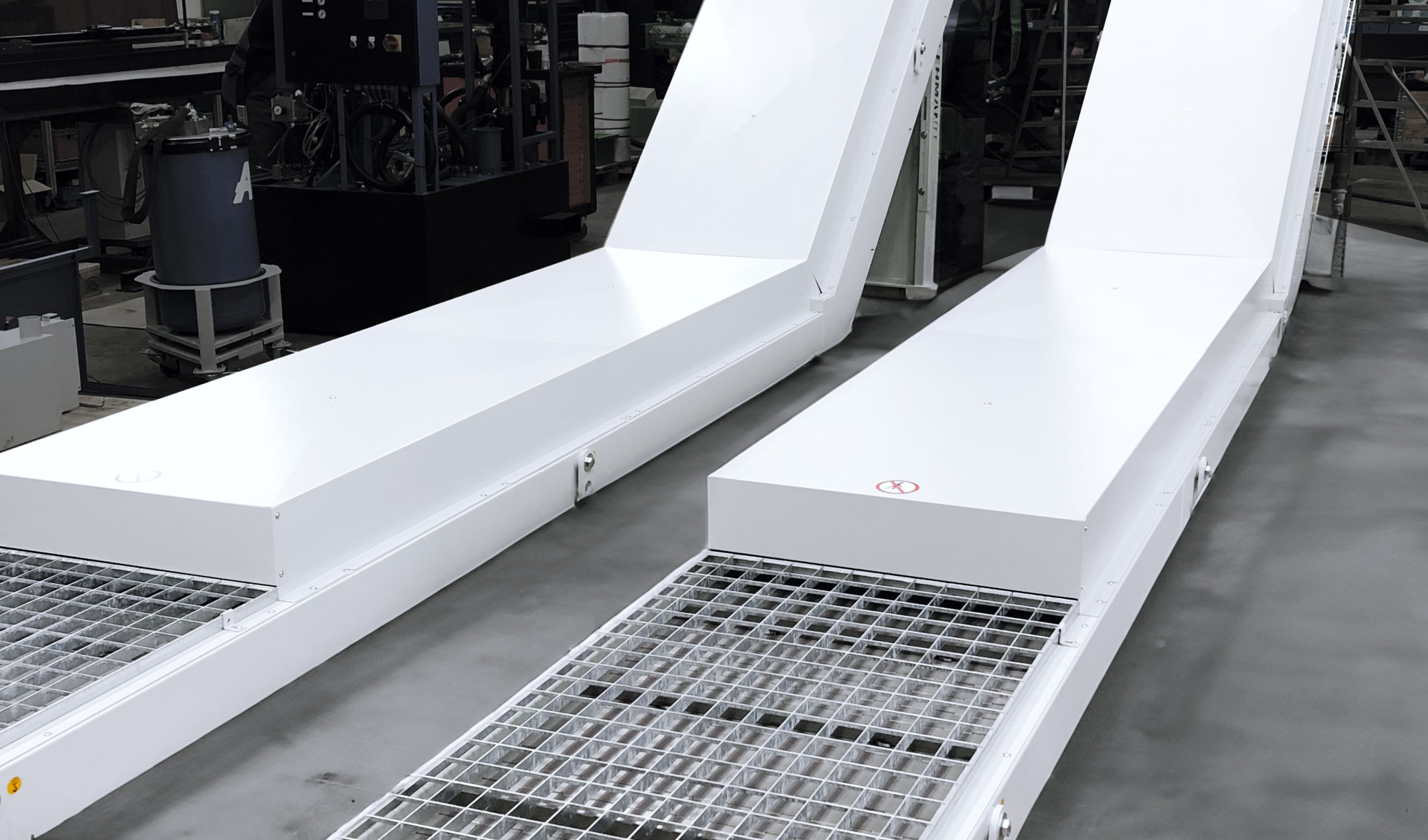

The conveyor is designed precisely to your requirements - with or without an inclined section, as a Z or angled conveyor. The discharge height and container are also individually designed to meet your requirements. Conveyor lengths of up to 50 m and various widths can be realized for individual systems.
